Domestic Insulated Cables as per the ISI standards
Manufacturer & Supplier of Multistrand Copper Cables. Our product range also Includes of Copper Cables and Aluminum Conductor Cables

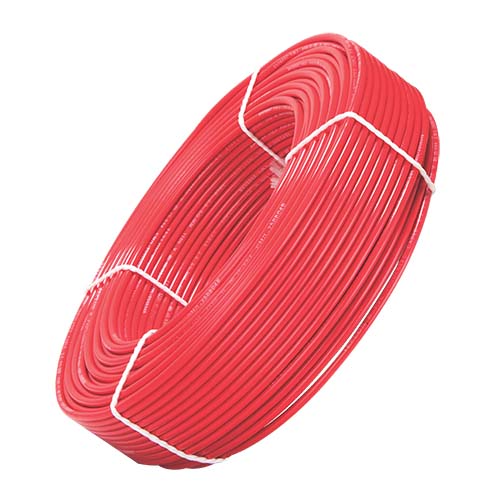

Domestic Pvc Insulated Multistrand Cable upto 1100V
Applications: Suitable for use in conduit and for fixed, protected installation.
Conductor: Many thin strands of Electrolytic Copper are fine – drawn simultaneously for uniformity of Resistance, Dimension, and Flexibility. The drawn strands are twisted in high precision machines which imparts circularity to the conductor.
Insulation: Specially formulated PVC insulation is used.
Approvals: IS 694 marked, – CM/L 2508046
Colours: Red, Yellow, Blue, Black, Green, Grey, White.
Packing: 90 mtrs. coils packed in protective cartons.
Range: .75 sq mm to 25 sq mm
Single Core Unsheathed PVC Insulated Cables IS:694, Voltage Grade 1100
| Nominal Area of Conductor sq. m.m. | Number/ Dia of Wire m.m. | Thickness of Insulatation (nom,) m.m. | Approx Overall Diameter m.m. | Current Rating AMPS. Casting AMPS. | Current Rating AMPS. Concealed AMPS. | Resistance KM@ 20°C Max. OHMS |
|---|---|---|---|---|---|---|
| .75 | 24/.2 | 0.6 | 2.4 | 7 | 7 | 26.0 |
| 1.0 | 14/.3 | 0.7 | 2.8 | 11 | 12 | 18.10 |
| 1.5 | 22.3 | 0.7 | 3.1 | 13 | 16 | 12.10 |
| 2.5 | 36/.3 | 0.8 | 3.8 | 18 | 22 | 7.41 |
| 4.0 | 56/.3 | 0.8 | 4.4 | 24 | 29 | 4.95 |
| 6.0 | 85/.3 | 0.8 | 5.0 | 31 | 37 | 3.30 |
